698-3800MHz N Female 4:4 Hybrid Combiner

Name: 6983800MHz N Female 44 Hybrid Combiner
Brand: Vinncom
Price: 1 USD

China 698-3800MHz N Female 4:4 Hybrid Combiner wholesale

Brand Name : Vinncom

Model Number : VN-HC4x4-0738-ON

Certification : ROHS ISO9000

Place of Origin : China

MOQ : 5pcs

Price : Negotiable

Payment Terms : D/A, L/C, D/P, T/T

Supply Ability : 60pcs per day

Frequency : 698-2700MHz 698-3800MHz

Connector : N Female

Color : Customized

OEM/ODM : Acceptable

Low PIM : -160dbc

Application : DAS IBS

ROHS : Compliance

Design : Wide Band

Contact Now

698-3800MHz N Female Low PIM 4 In 4 Out 4x4 Hybrid Coupler Combiner For DAS IBS

Good VSWR at all ports
High isolation
Good PIM up to -160@43dBm*2

VN-HC4x4-0738-300W-ON-xxx.pdf

Part Number	VN-HC4x4-0738-ON
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.3
Insertion Loss (dB)	6.2±1
Isolation (dB)	≥20
IM3 (dBc @ 2×43dBm)	-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	192 × 103 × 60
Net Weight (g)	1945 ± 20
Packing Dimensions (mm,L×W×H)	210 × 170 × 65
Packing Carton Size (mm,L×W×H)	530 × 440 × 80
ROHS Compliance	Yes

698-3800MHz N Female 4:4 Hybrid Combiner

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .

Product Tags:

4x4 RF Antenna Combiner

-160dbc RF Antenna Combiner

4x4 das combiner

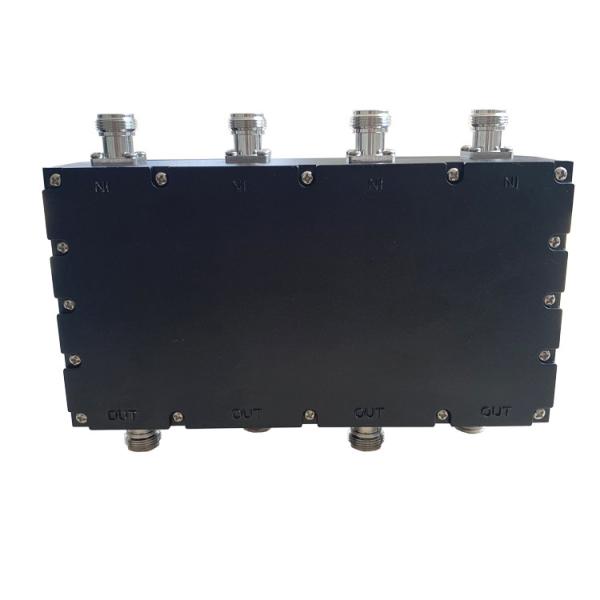

698-3800MHz N Female 4:4 Hybrid Combiner Images
